Jiangyin Changjiang Electric Appliance Co., Ltd.
$20-36.31 /Piece/Pieces
Model br.: LW38D-16/QY
marka: CJEL
| Prodajne jedinice: | Piece/Pieces |
|---|
transport: Ocean,Air,Express
Način plaćanja: T/T
Inkoterm: FOB,EXW
Model: LW38D-16/QF
Marka: Changjiang Electric (Jiangyin Changjiang Electric Appliance Co., Ltd.)

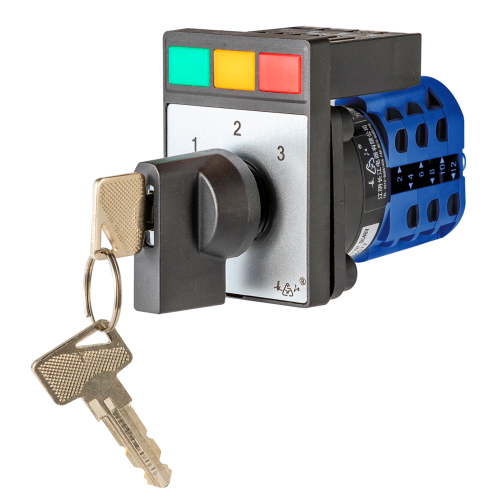

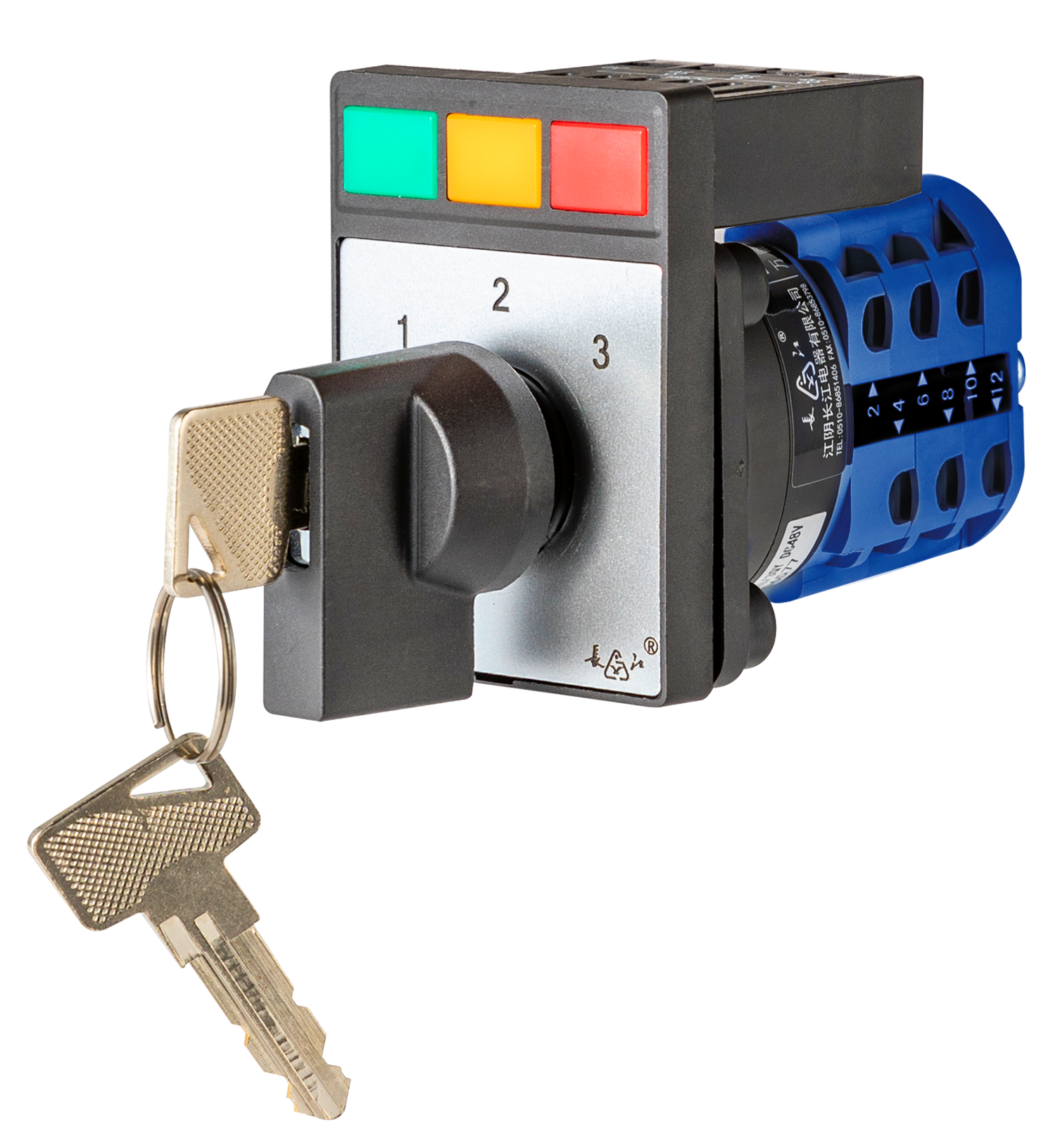

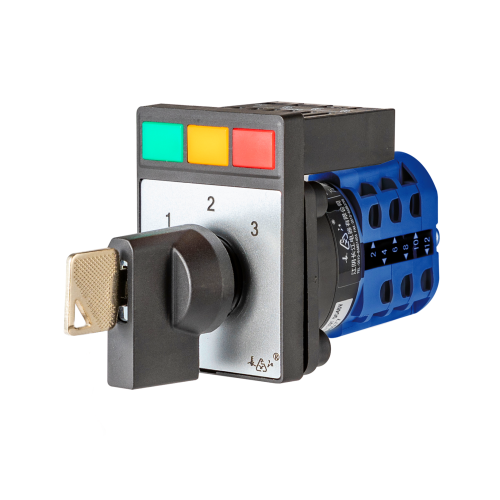

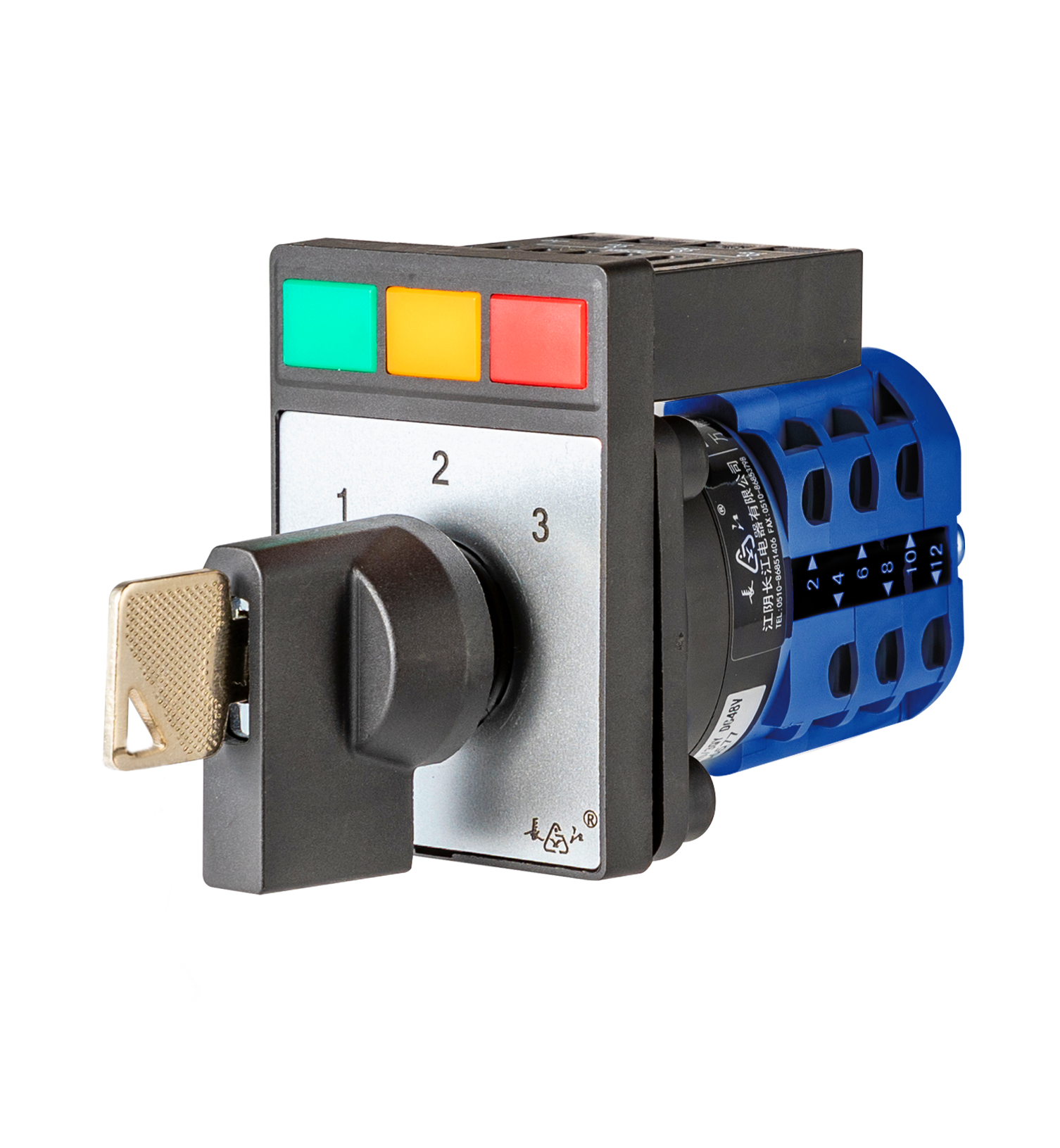

Grebasti prekidač LW38D-16/QF kombinira dvije ključne značajke u jednom integriranom rješenju: sustav indikacije s tri lampice (3 svjetla) namjenski dizajniran za operativne standarde China Southern Power Grid (CSG), plus sigurnosni mehanizam zaključavanja ključem koji omogućuje uklanjanje ključa u zaključanom položaju kako bi se spriječio neovlašteni rad. Ova jedinstvena kombinacija čini ga idealnim izborom za kontrolne sobe, panele trafostanica i kritičnu infrastrukturu gdje su i pregled statusa i kontrola pristupa najvažniji.
Kao dio serije LW38D, ovaj model pruža robusnu izvedbu prebacivanja s kompaktnim, modernim estetskim dizajnom terminala sigurnim za prste .
| Feature | Description | Operational Benefit |
|---|---|---|
| Four integrated indicator lamps | Built-in long-life LED lamps on the switch face | Comprehensive multi-status feedback at a single glance |
| Position-dependent illumination logic | Specific lamp combinations illuminate per switch position | Operator instantly identifies active source/mode |
| Long-life LED source | ≥ 30,000 hours operational life | Eliminates frequent bulb replacement and maintenance |
| Feature | Description | Security Benefit |
|---|---|---|
| Key removal in locked position | Key can be removed only when switch is locked | Prevents unauthorized operation |
| Handle locked when key removed | Handle cannot be rotated without key | Ensures circuit state remains secure |
| Multiple key codes | Different key codes available for security differentiation | Allows segregation of access authority |

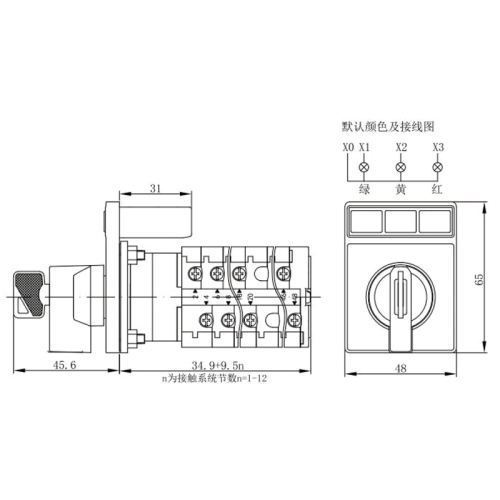

| Parameter | Specification |
|---|---|
| Model | LW38D-16/QF |
| Rated Thermal Current (Ith) | 16A (20A variant also available) |
| Rated Insulation Voltage (Ui) | AC 660V |
| Operating Frequency | 50–60Hz |
| Lamp Type | Four integrated indicator lights (F Type) |
| Lock Type | Key-lock with key removal in locked position (Q Type) |

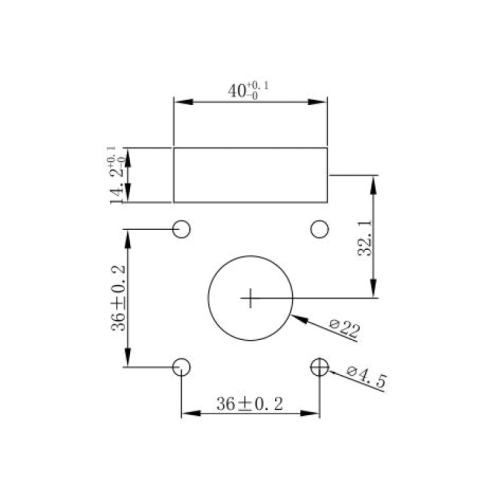

| Mounting Options | Screw mounting or center hole mounting |
| Protection Degree (Front) | IP65 with center hole mounting version |
| Contact Material | Silver alloy |
| Housing Material | Flame-retardant engineering plastic |
| Certifications | CCC, CE,CB, CCS (China Classification Society) optional |
